Made of monocrystalline silicon substrate from a single large crystal.
Boats/Sailboats, Yachts, Marine applications
Motorhomes/RVs, Expedition Vehicles, Commercial Trucks/Trailers, Caravans/Popup Off-Grid and Remote Communication places
Advanced technology back contact cells allow for flexibility and increased Wattage per Square Feet.
The unique frameless design includes six metal reinforced mounting holes for easy installation
Rigorous quality control to meet the highest international standards CE, TUV
High transmittance, flexible lamination material is less prone to cracking than traditional glass
Outstanding electrical performance under high temperature and weak light environments

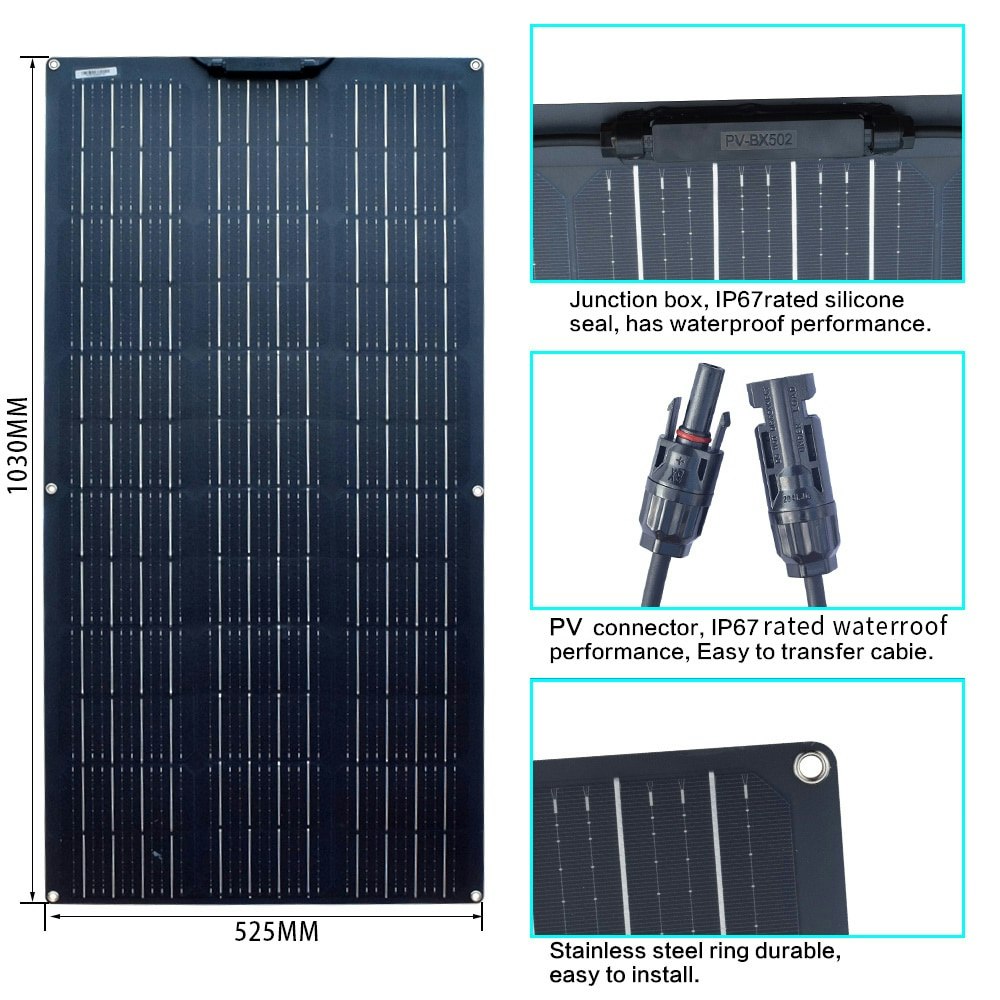

Positive and negative leads equipped with PV connectors
Two bypass diodes minimize performance drop due to partial shade
Set up easily:

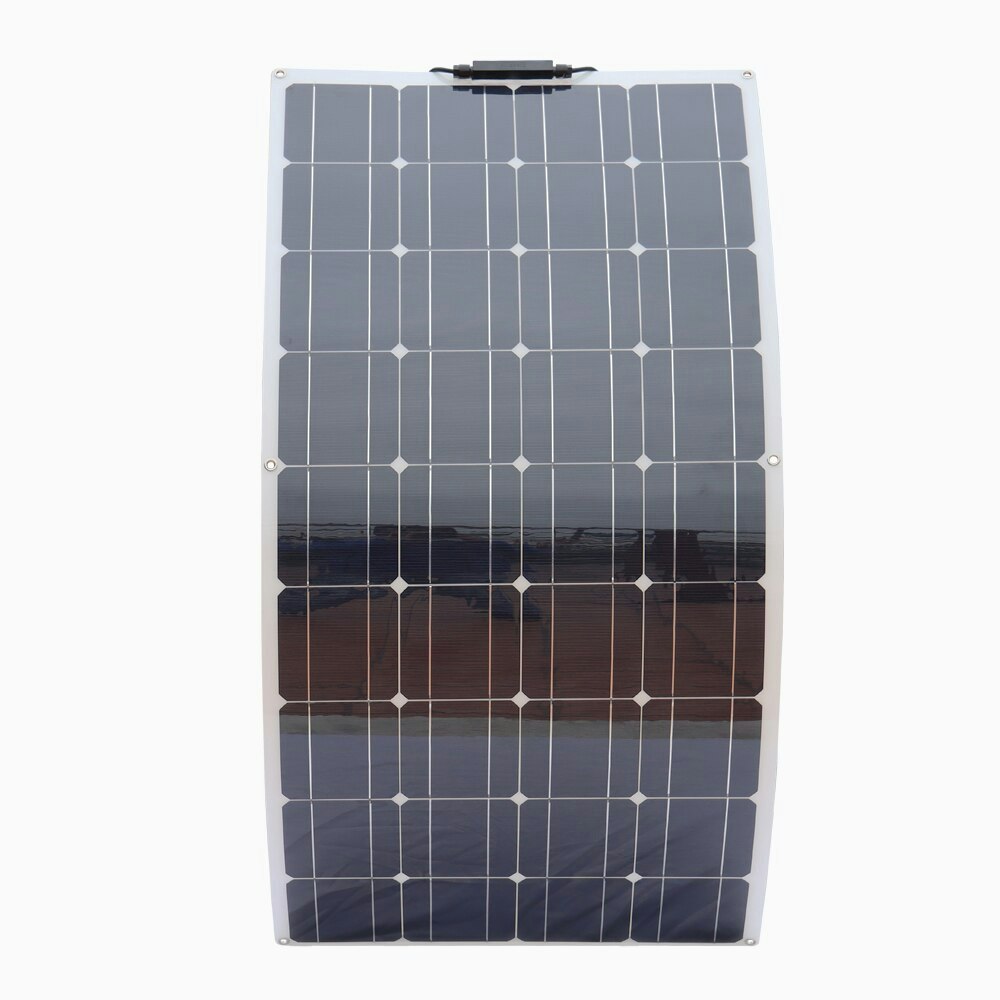

Can be conveniently placed on curved solid surfaces
Lighter and thinner, only 3mm thick.
Built-in blocking diode to prevent battery discharge at night
All weatherproof. They are water-proof and UV-Resistant. Potted junction box
For this product, we set up inventory in Russia, Canada, Ukraine, Australia, Spain，Belgium. When you buy it， we will ship it from your country that you don’t need to consider customs clearance and duties and it will be fast delivery.
However，the zip code in Spain that starts with 35, 38, 51, 52 need to provide buyer identity information, sales vouchers, and add 15 euros for customs clearance and duties.
The zip code in Russia that starts with 6，the delivery time is long ，maybe 30-45 days and some zip codes will only be sent to the post office instead of the shipping address，you need to go to the post office to pick up the parcel.
Some areas of Canada are remote areas and need to add remote fees. When you need to add remote fees, we will send you an email. Please check the mail, thank you！
Maximum power(Pmax) 100W
Output tolerance + 3%
Maximum system voltage 700V DC
Open circuit voltage(Voc) 19.2V
Short circuit current(Isc) 6.87A
Maximum power voltage(Vmp) 16V
Maximum power current(Imp) 6.25A
Cell efficiency 19.5%
Operating temperature（NOCT） 45±2℃
Temperature range -20℃～+80℃
Number of cells 32pcs
Size 1050*540*2.5 mm
Standard Test Conditions ： lrradiance 1000w/m2，Temperature 25℃,AM=1.5
